Cryo-EM structure of Pseudomonas aeruginosa tetrameric S-adenosyl-L-homocysteine hydrolase in the fully open state
Validation summary
Additional validation information
Please find validation analyses used for peer review in the wwPDB validation reports for this entries map (EMD-52237) and model-map (9hkv and EMD-52237). Validation analysis of this entry is available in the main page. Documentation for the outputs of EMDB Validation Analysis can be found on the help page.
Deposited map parameters
| Primary map | Half map 1 | Half map 2 | |
|---|---|---|---|
| Recommended contour level | 0.1 | - | - |
| Number of grid points | 256 × 256 × 256 | 256 × 256 × 256 | 256 × 256 × 256 |
| Voxel size (Å) | 0.860 × 0.860 × 0.860 | 0.860 × 0.860 × 0.860 | 0.860 × 0.860 × 0.860 |
| Minimum value | -0.002 | -0.385 | -0.413 |
| Maximum value | 2.666 | 0.708 | 0.602 |
| Average value | 0.003 | 0.001 | 0.001 |
| Standard deviation | 0.043 | 0.037 | 0.037 |
-
Orthogonal projection
-
Title
X
Y
Z
-
-
More projections
-
-

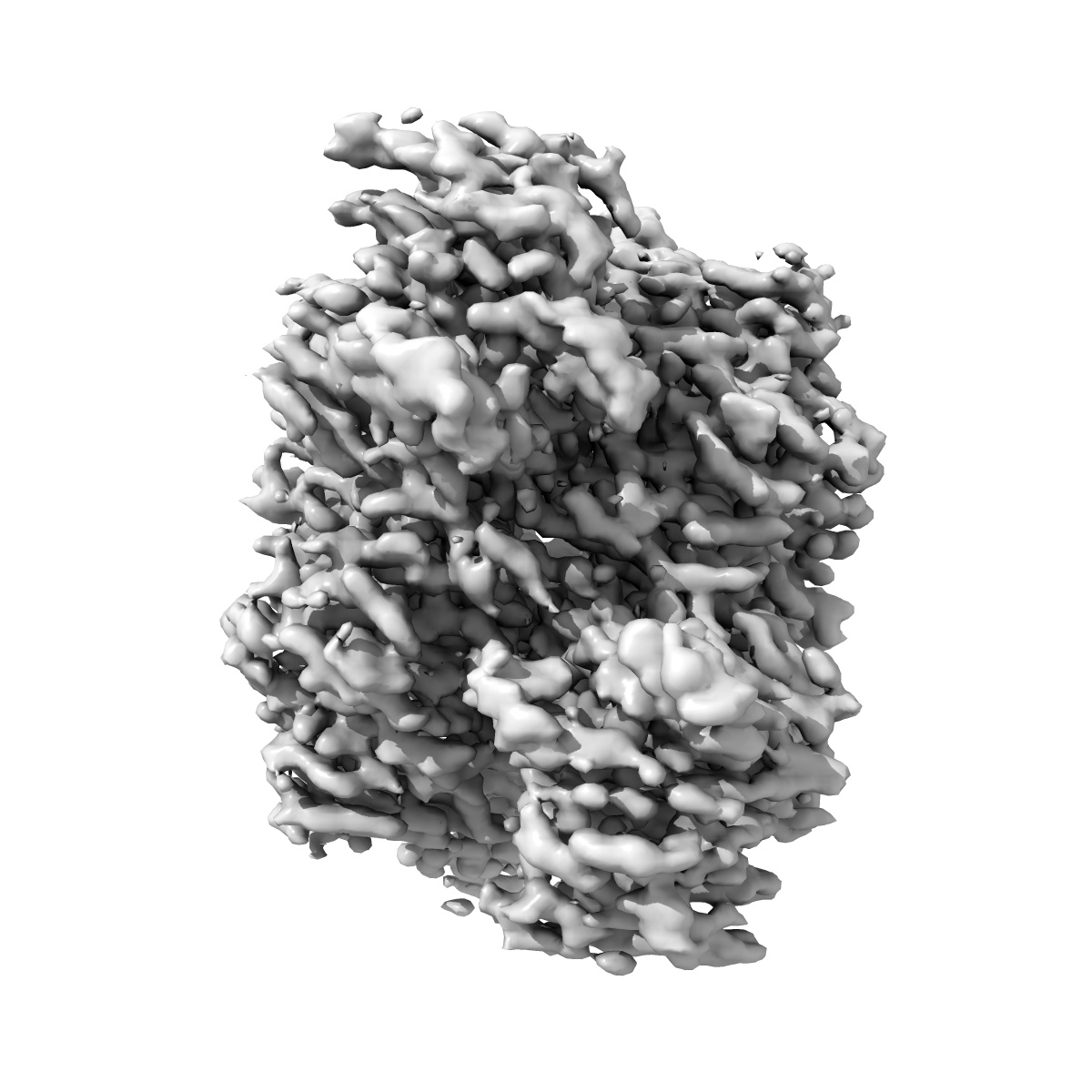

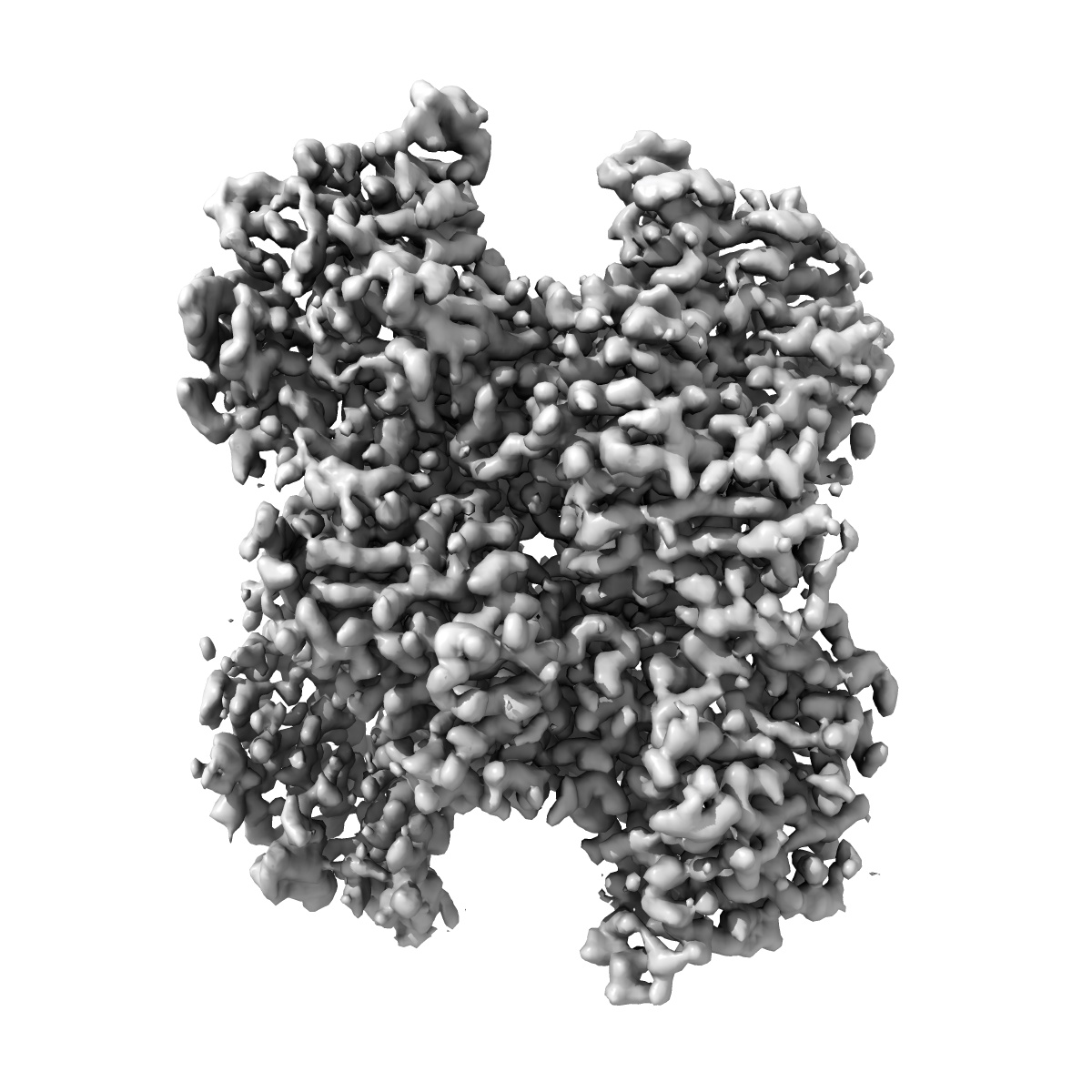

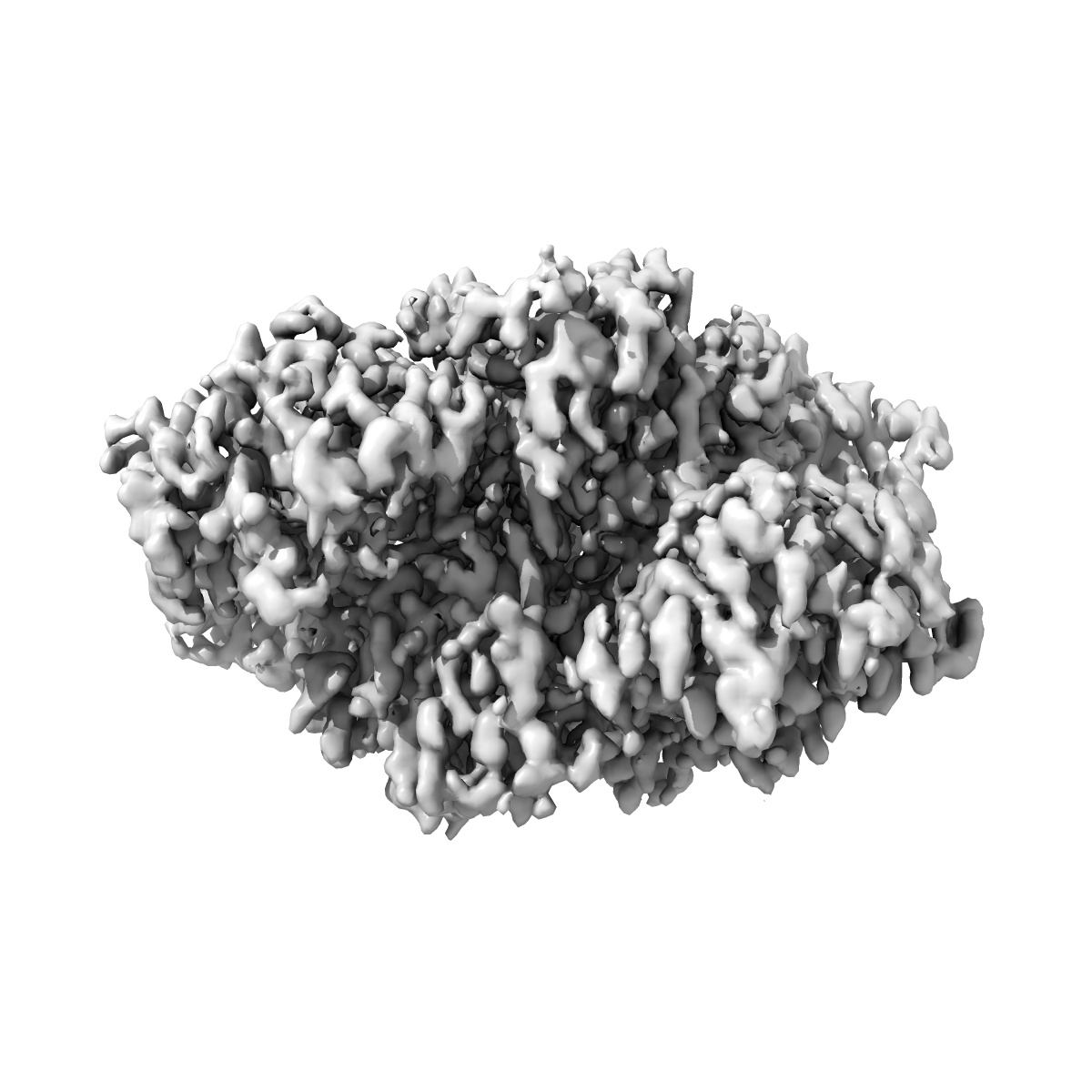

Orthogonal surface
views (at contour level: 0.1)
-
Title
X
Y
Z
-
-
Orthogonal projection (false-colour)
-
Title
X
Y
Z
-
-
Orthogonal maximum-value
projections
-
Title
X
Y
Z
-
-

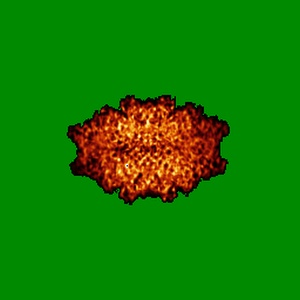

Orthogonal standard-deviation
projections
-
Title
X
Y
Z
-
-
Orthogonal minimum-value
projections
-
Title
X
Y
Z
-
-
Orthogonal median-value projections
-
Title
X
Y
Z
-
-
Central slices
-
Title
X
Y
Z
-
-
Largest variance slices
-
Title
X Index: 147
Y Index: 137
Z Index: 113
-
-
Orthogonal surface
views (at contour level: 0.1)
-

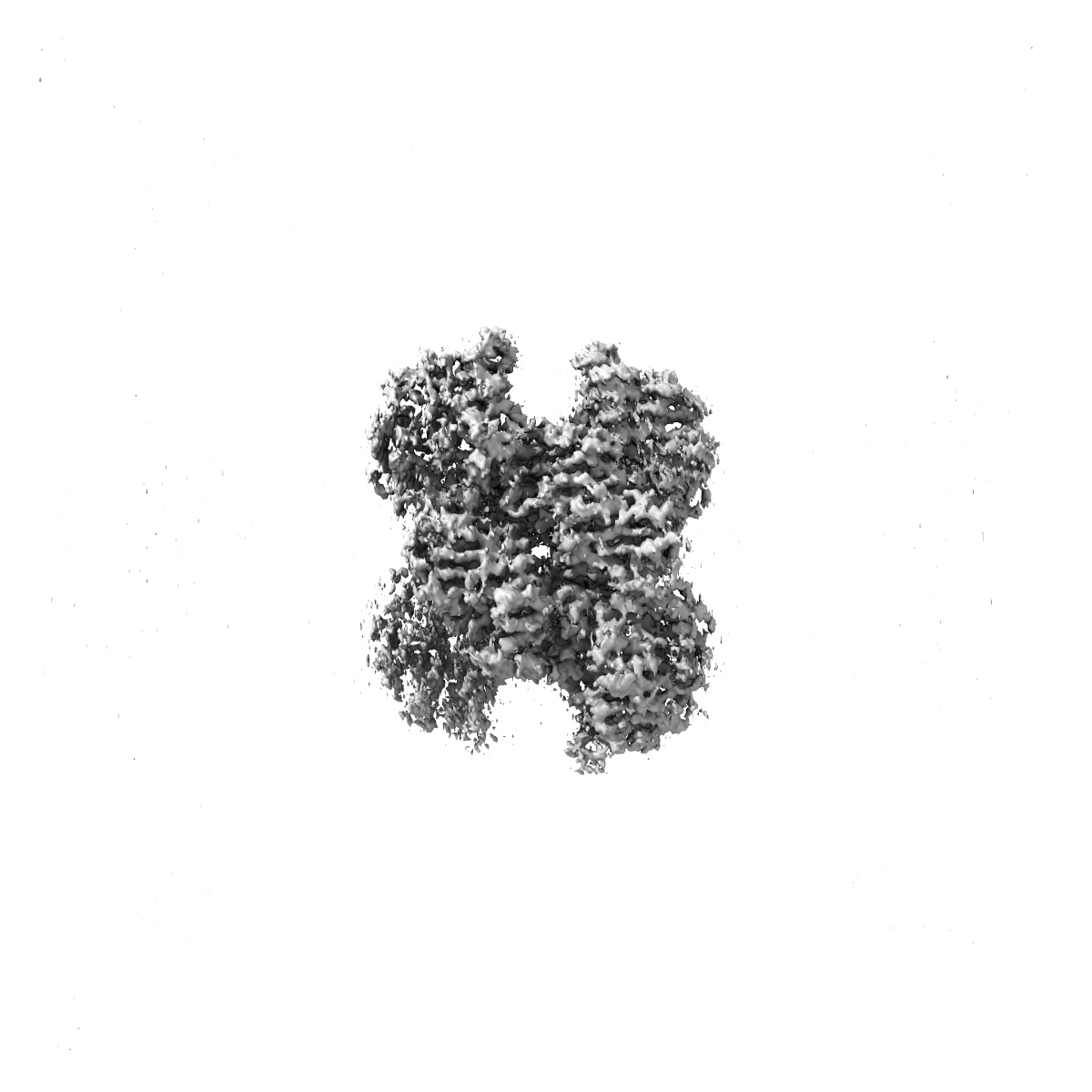

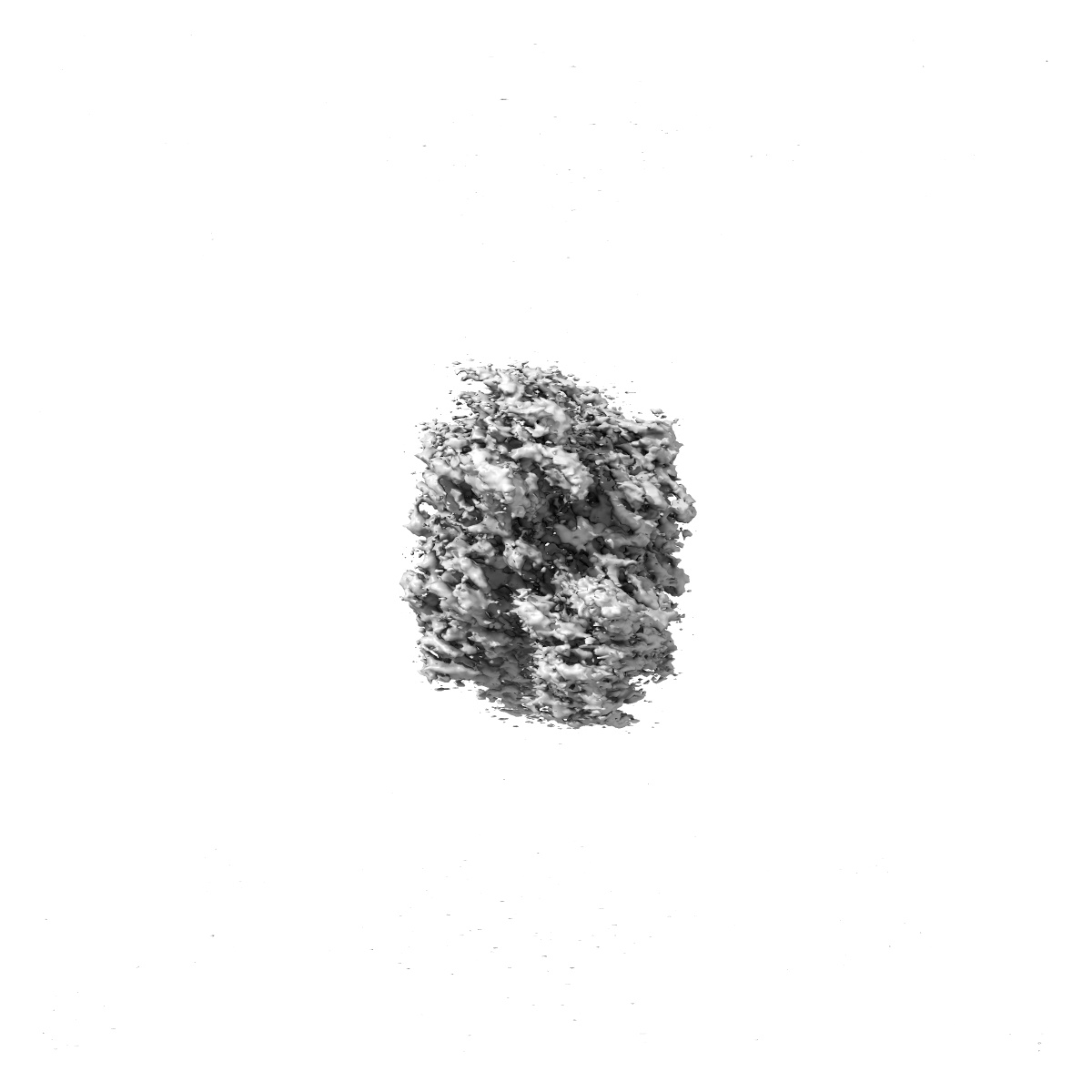

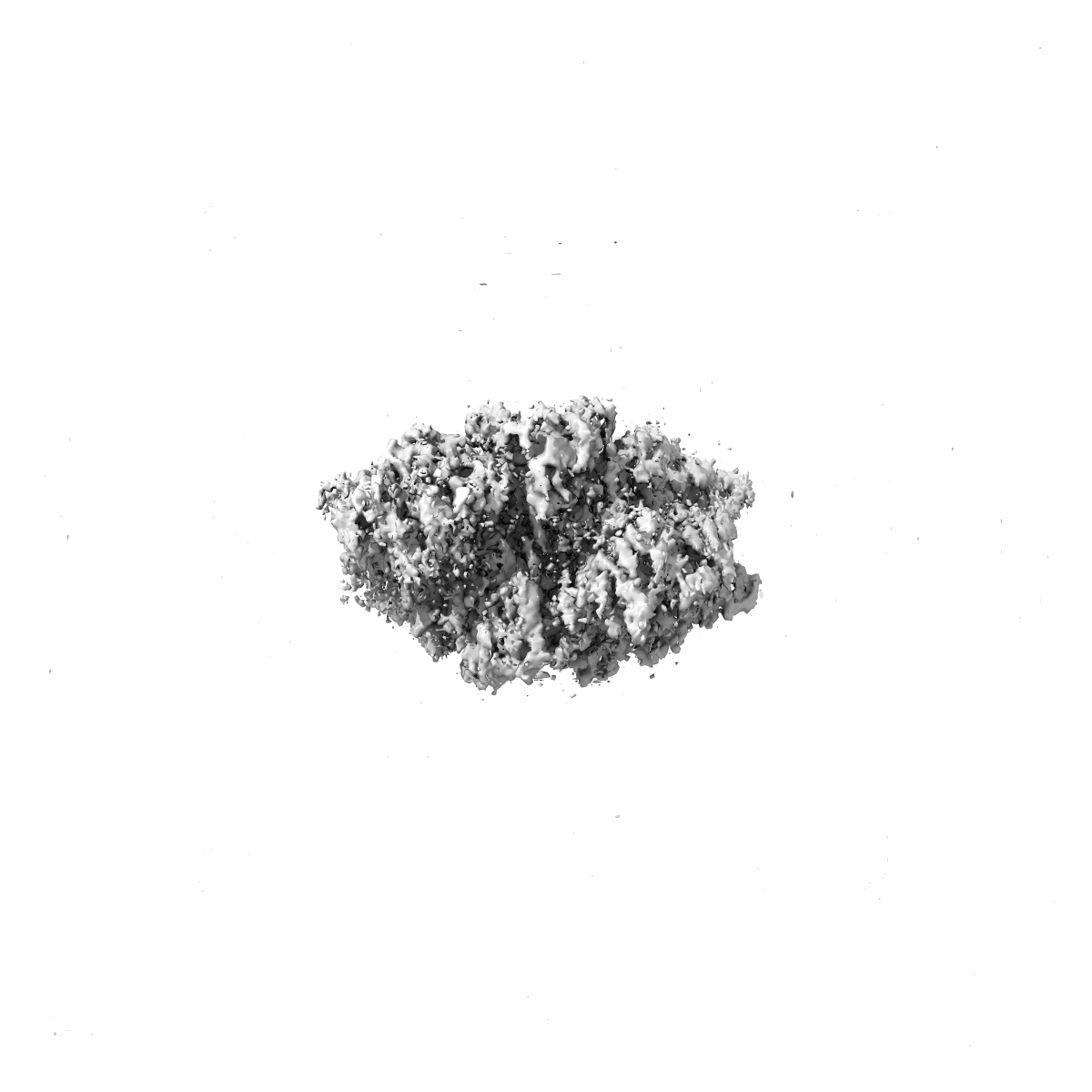

Raw map visualisation (Raw map calculated from deposited two half-maps)
-
More projections
-
-
Orthogonal projections of raw map
-
Title
X
Y
Z
-
-
Orthogonal projections of raw map
(false-colour)
-
Title
X
Y
Z
-
-

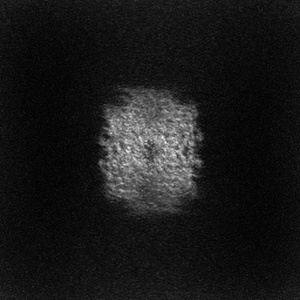

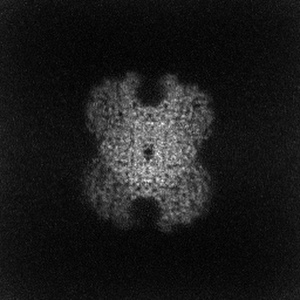

Orthogonal maximum-value projections of
raw
map
-
Title
X
Y
Z
-
-
Orthogonal minimum-value
projections of
raw map
-
Title
X
Y
Z
-
-
Orthogonal median-value projections
of
raw map
-
Title
X
Y
Z
-
-
Central slices of raw map
-
Title
X
Y
Z
-
-
Largest variance slices of raw map
-
Title
X
Y
Z
-
-
Orthogonal projections of raw map
-
| Projection image zero values* | |||
|---|---|---|---|
| Map | Vertical % | Horizontal % | Overall % |
| Primary map | 0.07 % | 0.09 % | 82.73 % |
| Raw map | 0.0 % | 0.0 % | 0.0 % |
* measured on z-projection images. Zero(green) values on the image indicative of low signal or masked voxels
| Map resolution (Å) measured by Fourier Shell Correlation (FSC) | ||||
|---|---|---|---|---|
| EMDB calculated FSC | Author FSC | |||
| Threshold | Unmasked | Masked | Corrected | Author |
| FSC 0.143 | 3.50 | 3.13 | 3.13 | 2.88 |
Map and 1 fitted model
Model-map evaluation bars:
| Model | Metric | Evaluation bar | Average value |
|---|---|---|---|
| 9hkv | Q-score |
0.37
|
|
| Atom Inclusion |
0.741
|
||
| CCC |
0.636
|
||
| SMOC |
0.628
|
||
Map with model 9hkv (Cryo-EM structure of Pseudomonas aeruginosa tetrameric S-adenosyl-L-homocysteine hydrolase in the fully open state)
X
Y
Z
Threshold comparison:
Chain scores summary
-
Atom inclusion at 0.1 contour level
-
Title
X
Y
Z
-
-
Residue fit view
based on Q-score
-
Title
X
Y
Z
-
Depositor mask(s)
Mask with primary map (msk_1)
X
Y
Z
EMDB generated mask(s)
FSC mask with raw map
X
Y
Z
