NDH-PSI-LHCI supercomplex from S. oleracea: local refined membrane arm of NDH
Validation summary
Additional validation information
Please find validation analyses used for peer review in the wwPDB validation reports for this entries map (EMD-19246). Validation analysis of this entry is available in the main page. Documentation for the outputs of EMDB Validation Analysis can be found on the help page.

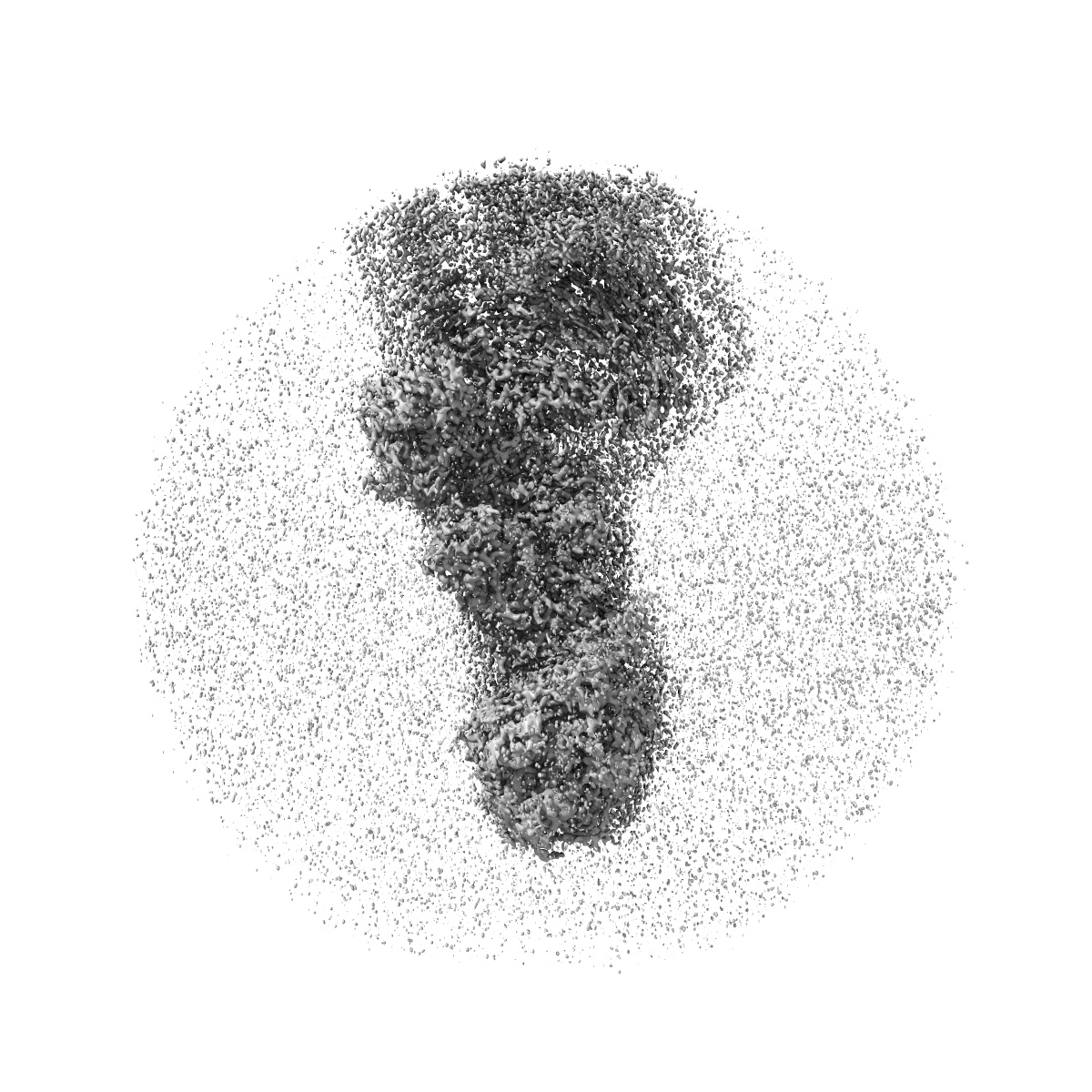

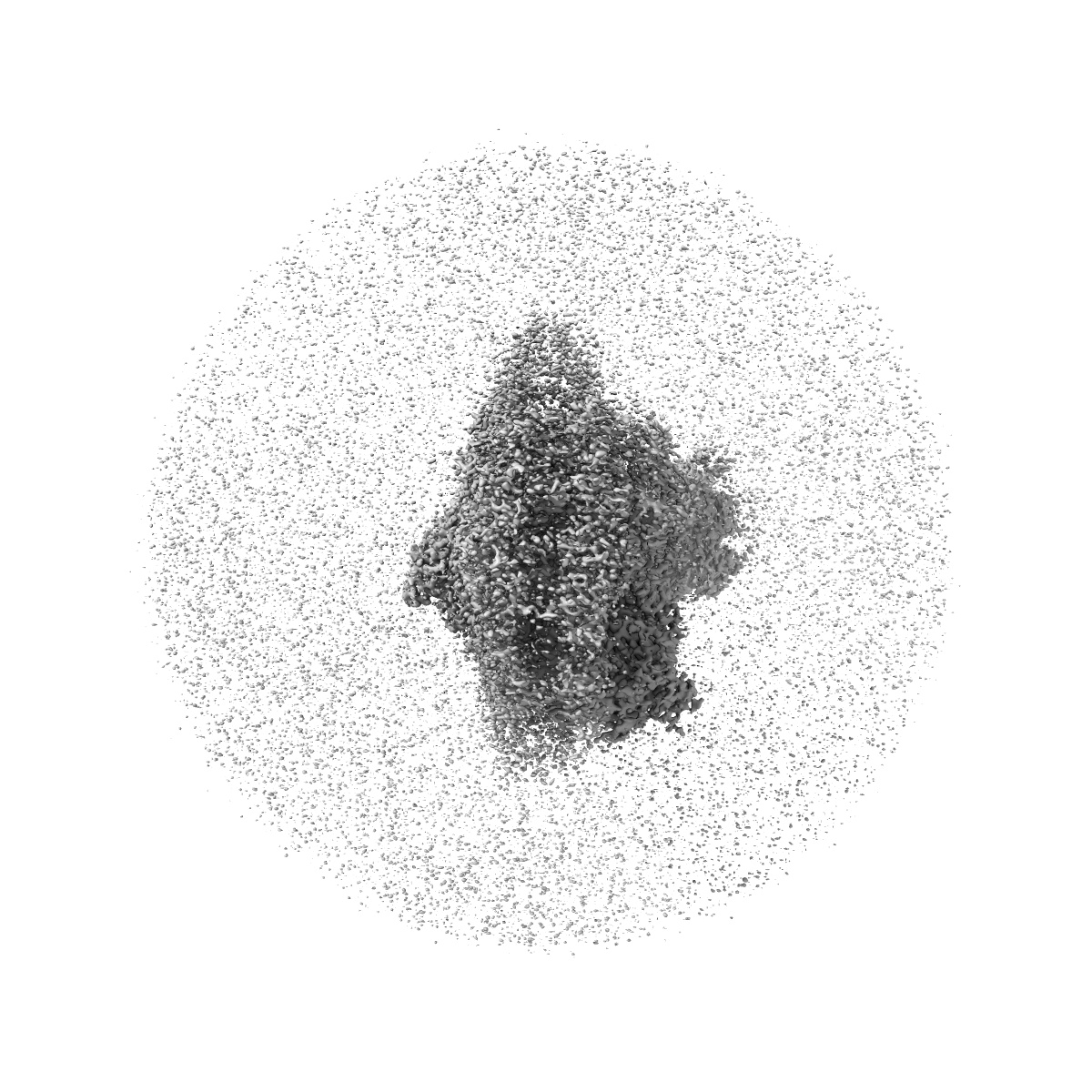

Deposited map parameters
| Primary map | Half map 1 | Half map 2 | |
|---|---|---|---|
| Recommended contour level | 0.29 | - | - |
| Number of grid points | 512 × 512 × 512 | 512 × 512 × 512 | 512 × 512 × 512 |
| Voxel size (Å) | 0.837 × 0.837 × 0.837 | 0.837 × 0.837 × 0.837 | 0.837 × 0.837 × 0.837 |
| Minimum value | -1.140 | -1.389 | -1.266 |
| Maximum value | 2.147 | 1.346 | 1.399 |
| Average value | 0.001 | 0.001 | 0.001 |
| Standard deviation | 0.078 | 0.143 | 0.144 |
-

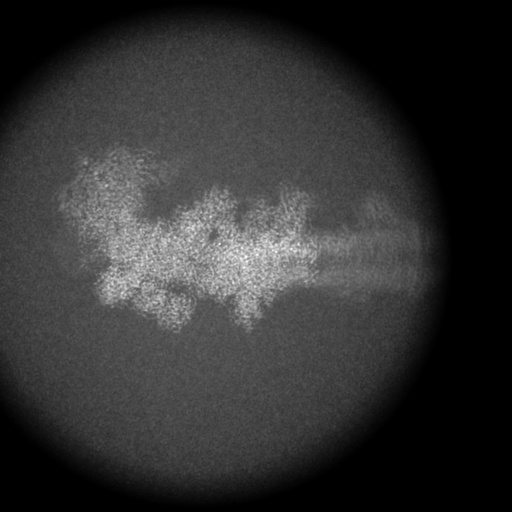

Orthogonal projection
-
Title
X
Y
Z
-
-
More projections
-
-

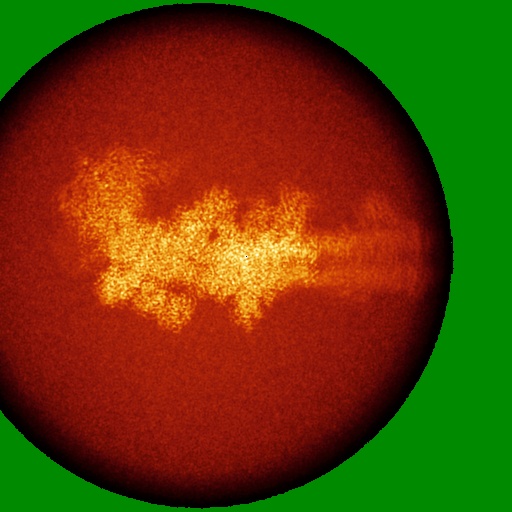

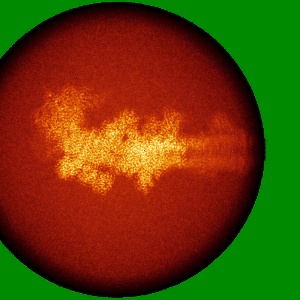

Orthogonal projection (false-colour)
-
Title
X
Y
Z
-
-

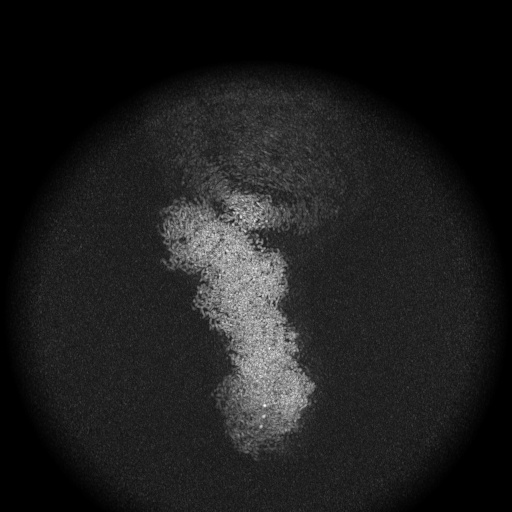

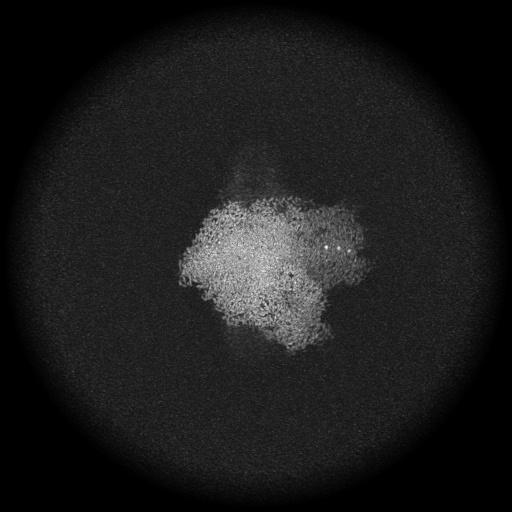

Orthogonal maximum-value
projections
-
Title
X
Y
Z
-
-

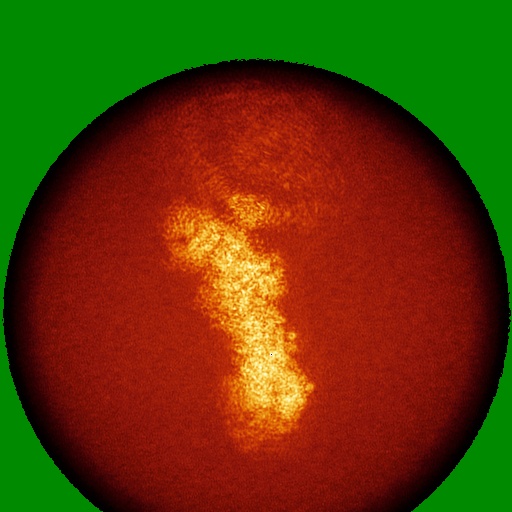

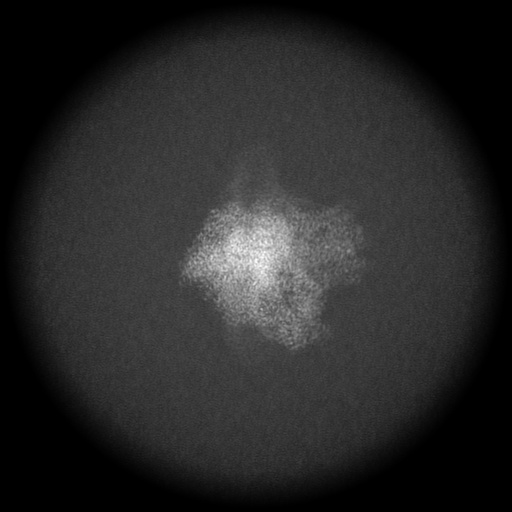

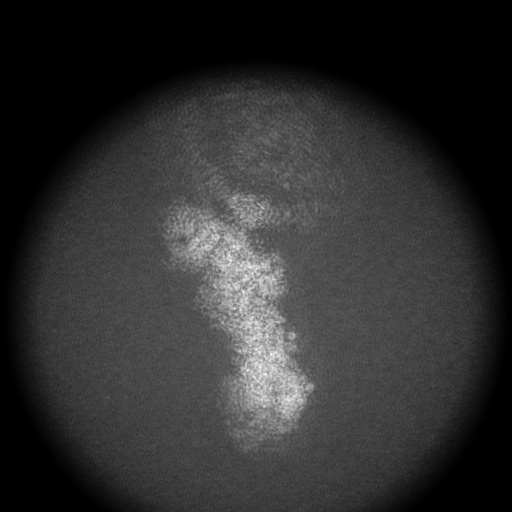

Orthogonal standard-deviation
projections
-
Title
X
Y
Z
-
-
Orthogonal minimum-value
projections
-
Title
X
Y
Z
-
-
Orthogonal median-value projections
-
Title
X
Y
Z
-
-

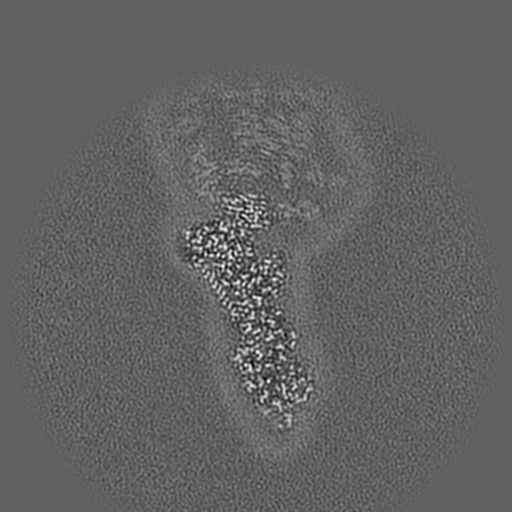

Central slices
-
Title
X
Y
Z
-
-

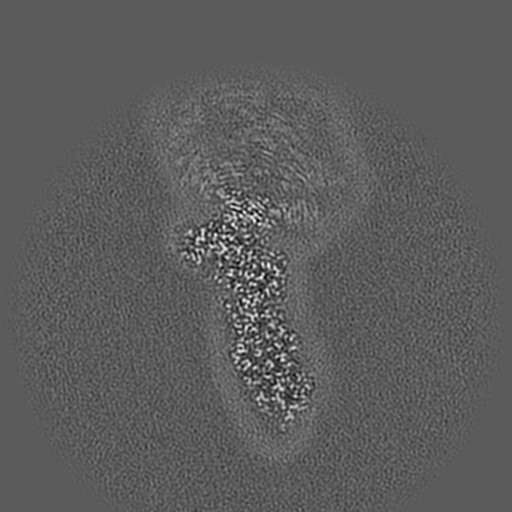

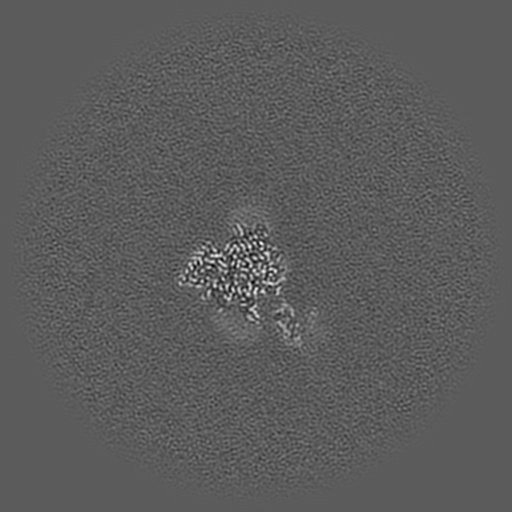

Largest variance slices
-
Title
X Index: 261
Y Index: 260
Z Index: 246
-
-
Orthogonal projection (false-colour)
-
Raw map visualisation (Raw map calculated from deposited two half-maps)
-
More projections
-
-

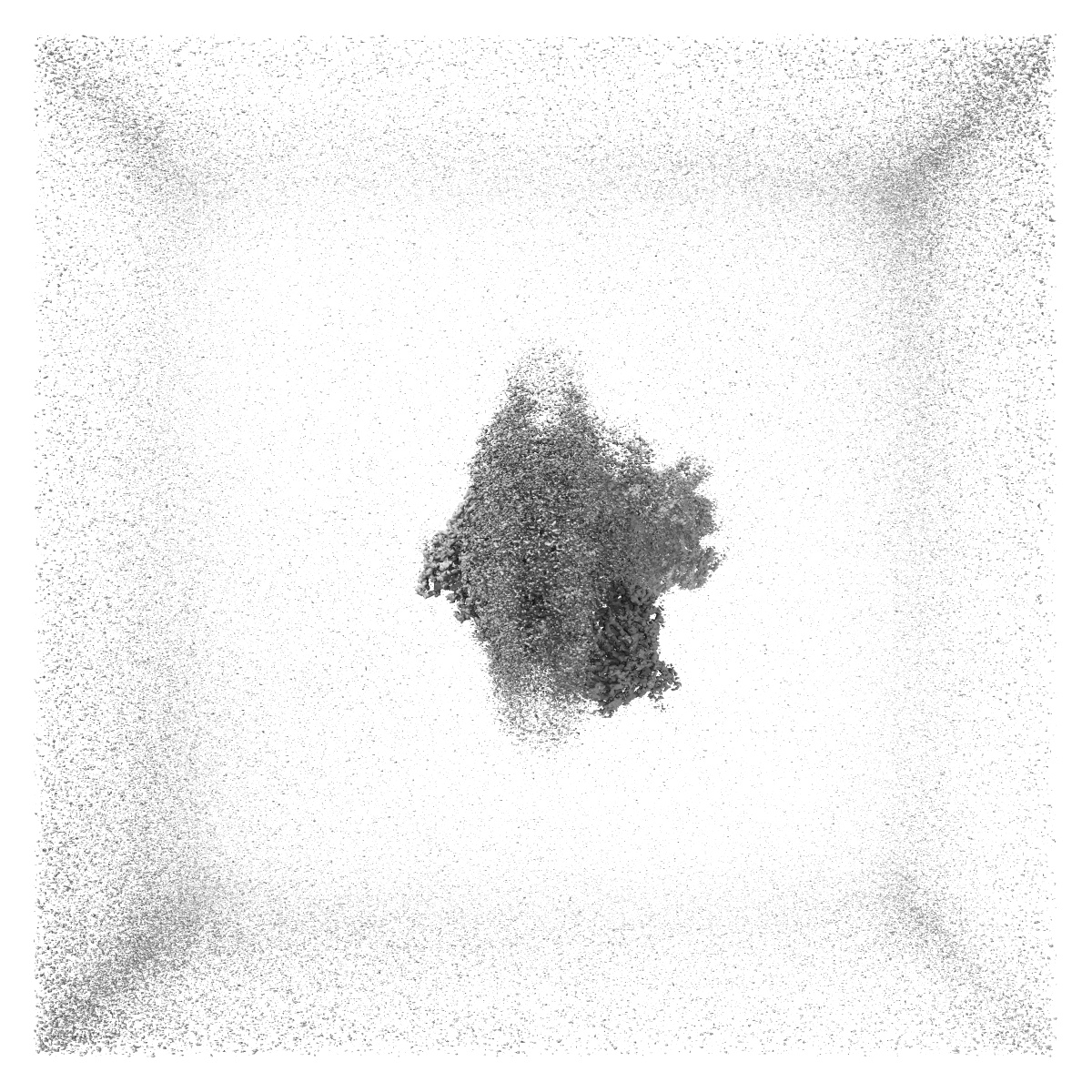

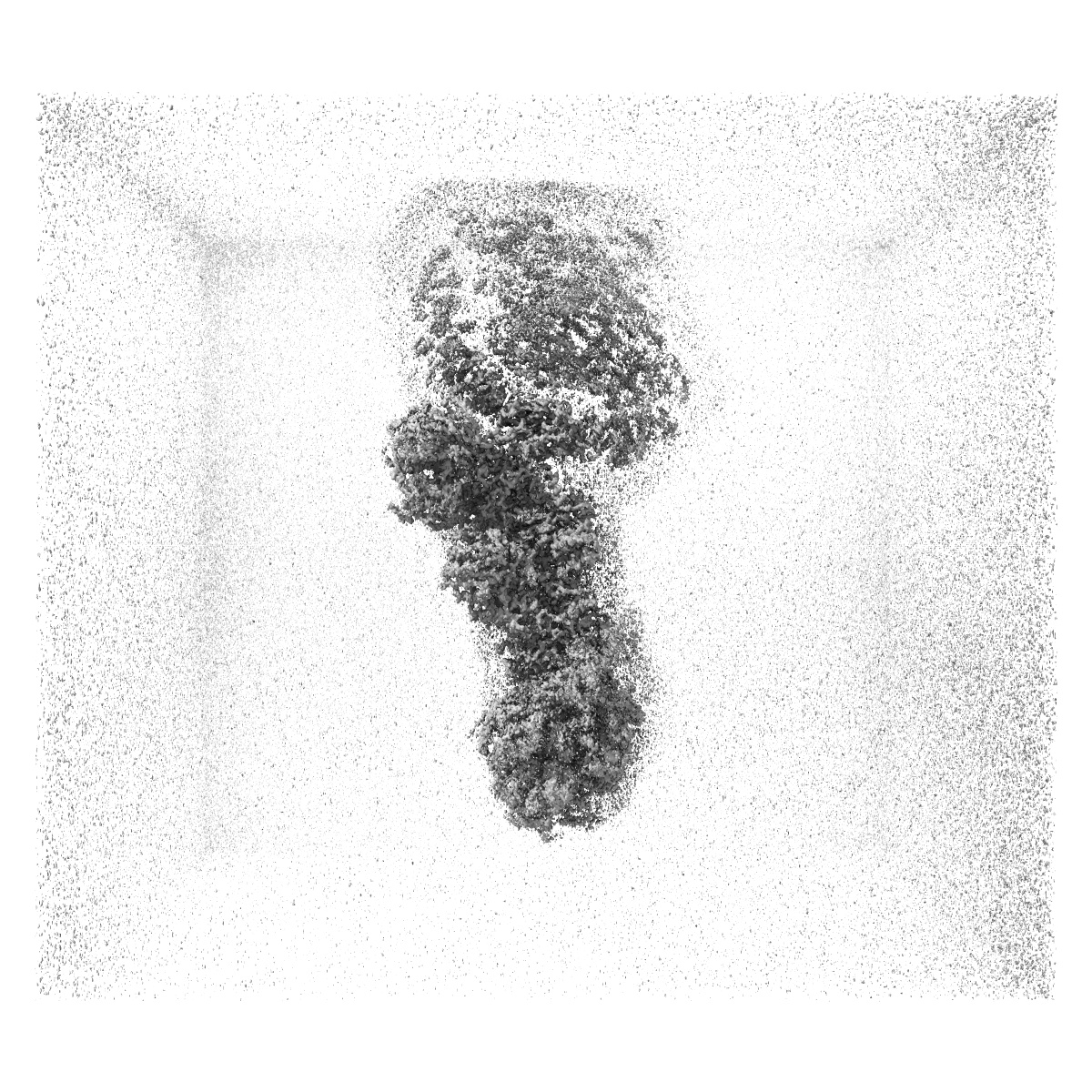

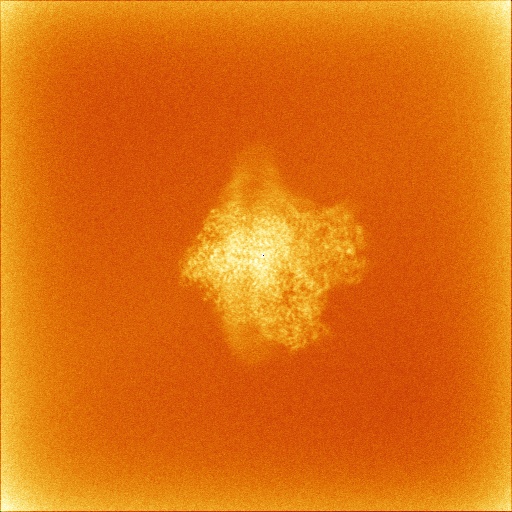

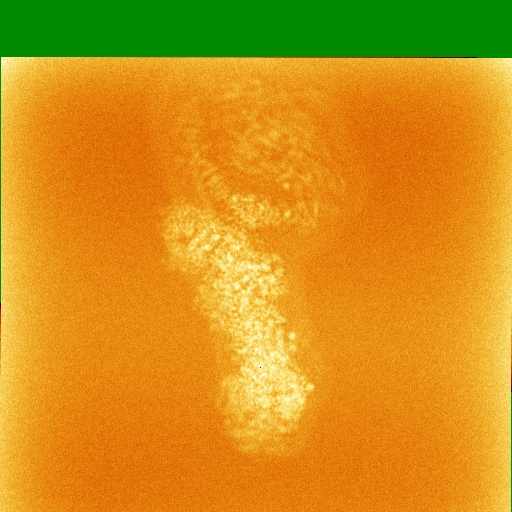

Orthogonal projections of raw map
-
Title
X
Y
Z
-
-

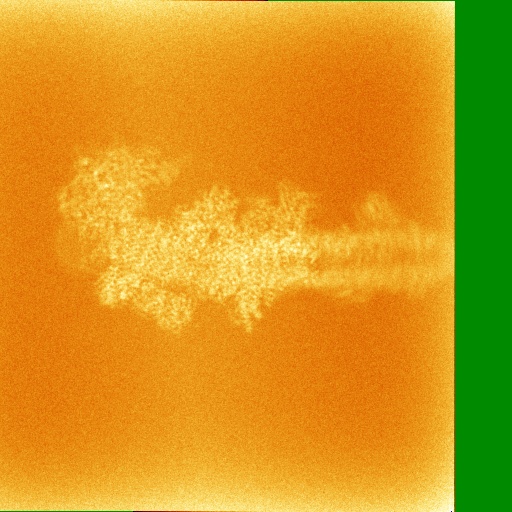

Orthogonal projections of raw map
(false-colour)
-
Title
X
Y
Z
-
-

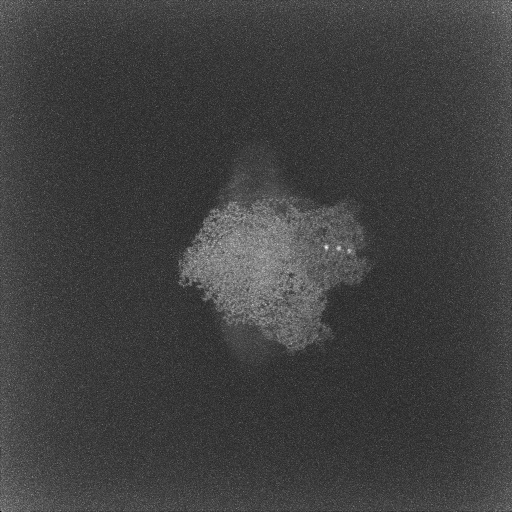

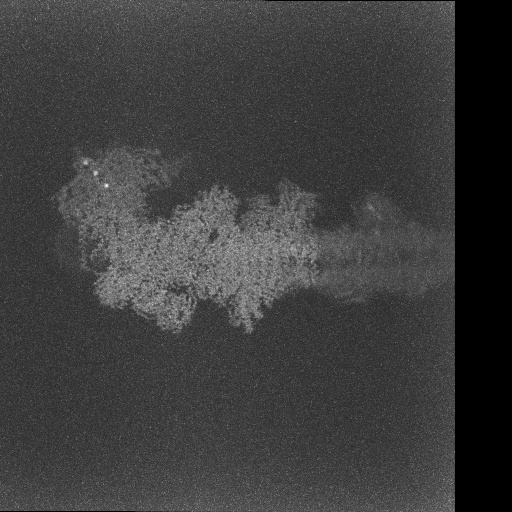

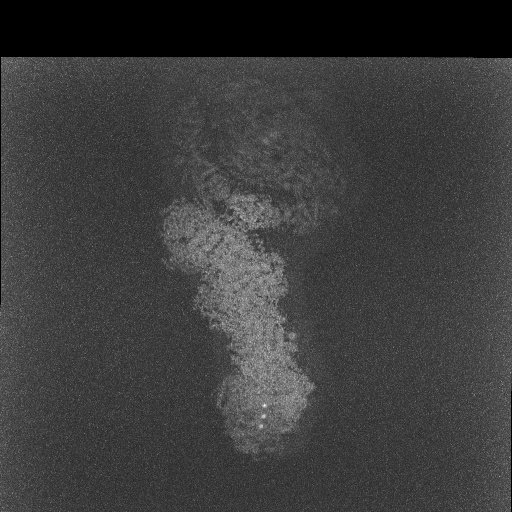

Orthogonal maximum-value projections of
raw
map
-
Title
X
Y
Z
-
-
Orthogonal minimum-value
projections of
raw map
-
Title
X
Y
Z
-
-
Orthogonal median-value projections
of
raw map
-
Title
X
Y
Z
-
-

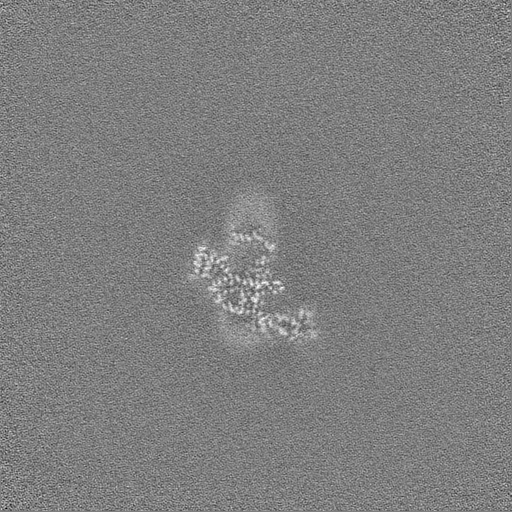

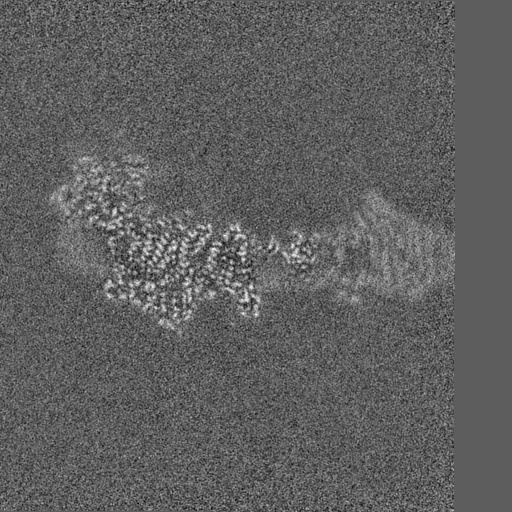

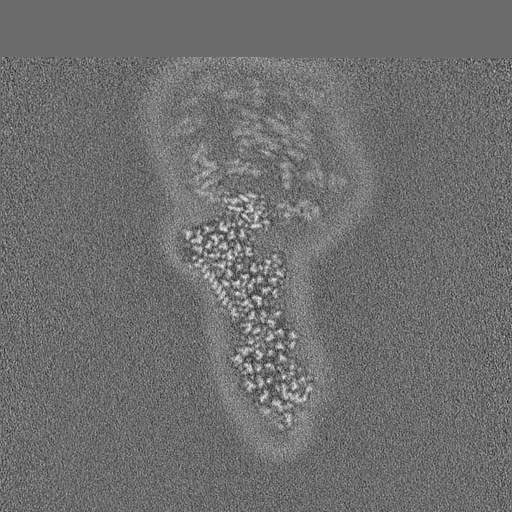

Central slices of raw map
-
Title
X
Y
Z
-
-
Largest variance slices of raw map
-
Title
X
Y
Z
-
-
Orthogonal projections of raw map
-
| Projection image zero values* | |||
|---|---|---|---|
| Map | Vertical % | Horizontal % | Overall % |
| Primary map | 0.37 % | -0.37 % | 18.39 % |
| Raw map | 0.0 % | 0.0 % | 0.0 % |
* measured on z-projection images. Zero(green) values on the image indicative of low signal or masked voxels
| Map resolution (Å) measured by Fourier Shell Correlation (FSC) | ||||
|---|---|---|---|---|
| EMDB calculated FSC | Author FSC | |||
| Threshold | Unmasked | Masked | Corrected | Author |
| FSC 0.143 | 4.52 | 3.52 | 3.52 | 4.50 |
Depositor mask(s)
Mask with primary map (msk_1)
X
Y
Z
EMDB generated mask(s)
FSC mask with raw map
X
Y
