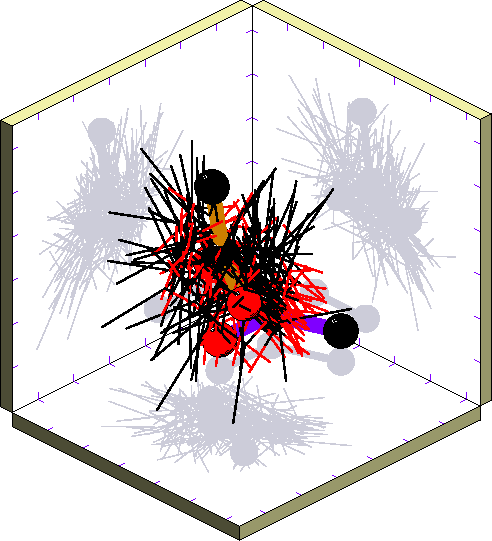

Ser-Asp. Cluster 6

Cluster 6. Size 96 ( 15.59 st. devs. from mean )

Sequence separations

Separation along the main-chain between the two contacting residues.

          i  ->  i + 2          0
          i  ->  i + 3          3  ***
          i  ->  i + 4          4  ****
          i  ->  i + 5          1  *
          i  ->  i + 6          2  **
          i  ->  i + 7          2  **
          i  ->  i + 8+        94  ********************+

R.m.s. distance ranges

R.m.s. distance ranges of cluster members from representative sidechain.

            Distance
              range       Count
            0.0-0.1           0
            0.1-0.2           0
            0.2-0.3           0
            0.3-0.4           0
            0.4-0.5           1  *
            0.5-0.6           0
            0.6-0.7           3  ***
            0.7-0.8           5  *****
            0.8-0.9           7  *******
            0.9-1.0           9  *********
            1.0-1.1          12  ************
            1.1-1.2          21  ********************+
            1.2-1.3          11  ***********
            1.3-1.4          14  **************
            1.4-1.5          12  ************
