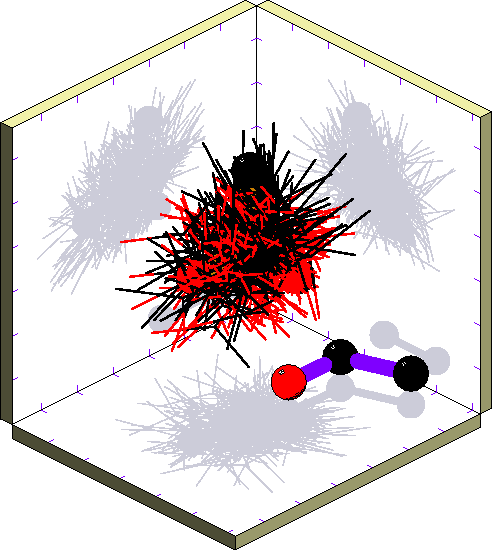

Ser-Asp. Cluster 2

Cluster 2. Size 191 ( 40.54 st. devs. from mean )

Sequence separations

Separation along the main-chain between the two contacting residues.

          i  ->  i + 2          0
          i  ->  i + 3         40  ********************+
          i  ->  i + 4          4  ****
          i  ->  i + 5          2  **
          i  ->  i + 6          2  **
          i  ->  i + 7          5  *****
          i  ->  i + 8+       128  ********************+

R.m.s. distance ranges

R.m.s. distance ranges of cluster members from representative sidechain.

            Distance
              range       Count
            0.0-0.1           0
            0.1-0.2           0
            0.2-0.3           1  *
            0.3-0.4           2  **
            0.4-0.5           2  **
            0.5-0.6           0
            0.6-0.7           5  *****
            0.7-0.8           6  ******
            0.8-0.9          12  ************
            0.9-1.0          14  **************
            1.0-1.1          24  ********************+
            1.1-1.2          33  ********************+
            1.2-1.3          34  ********************+
            1.3-1.4          29  ********************+
            1.4-1.5          28  ********************+
