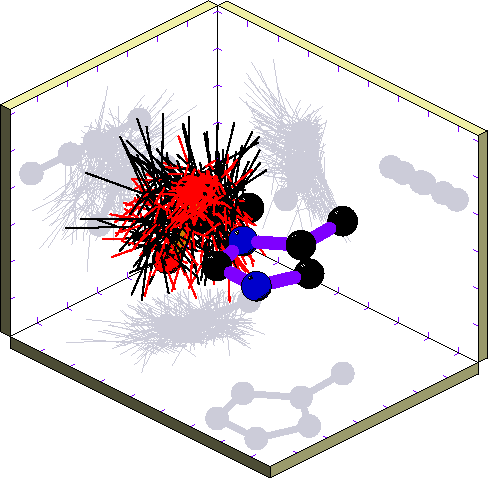

His-Asp. Cluster 4

Cluster 4. Size 73 ( 19.45 st. devs. from mean )

Sequence separations

Separation along the main-chain between the two contacting residues.

          i  ->  i + 2          0
          i  ->  i + 3         22  ********************+
          i  ->  i + 4          4  ****
          i  ->  i + 5          0
          i  ->  i + 6          0
          i  ->  i + 7          3  ***
          i  ->  i + 8+        91  ********************+

R.m.s. distance ranges

R.m.s. distance ranges of cluster members from representative sidechain.

            Distance
              range       Count
            0.0-0.1           0
            0.1-0.2           0
            0.2-0.3           0
            0.3-0.4           0
            0.4-0.5           0
            0.5-0.6           0
            0.6-0.7           0
            0.7-0.8           1  *
            0.8-0.9           6  ******
            0.9-1.0           4  ****
            1.0-1.1          11  ***********
            1.1-1.2           9  *********
            1.2-1.3          14  **************
            1.3-1.4          15  ***************
            1.4-1.5          12  ************
