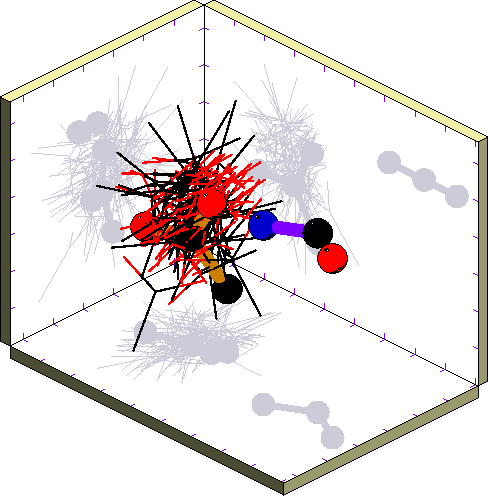

Gln-Asp. Cluster 5

Cluster 5. Size 45 ( 3.51 st. devs. from mean )

Sequence separations

Separation along the main-chain between the two contacting residues.

          i  ->  i + 2          0
          i  ->  i + 3          4  ****
          i  ->  i + 4         23  ********************+
          i  ->  i + 5          2  **
          i  ->  i + 6          1  *
          i  ->  i + 7          2  **
          i  ->  i + 8+        39  ********************+

R.m.s. distance ranges

R.m.s. distance ranges of cluster members from representative sidechain.

            Distance
              range       Count
            0.0-0.1           0
            0.1-0.2           0
            0.2-0.3           0
            0.3-0.4           0
            0.4-0.5           0
            0.5-0.6           1  *
            0.6-0.7           1  *
            0.7-0.8           3  ***
            0.8-0.9           5  *****
            0.9-1.0           6  ******
            1.0-1.1           0
            1.1-1.2           3  ***
            1.2-1.3           4  ****
            1.3-1.4          10  **********
            1.4-1.5          11  ***********
