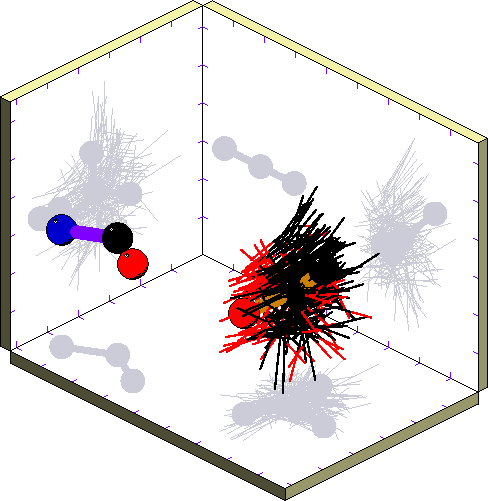

Gln-Asp. Cluster 2

Cluster 2. Size 95 ( 29.53 st. devs. from mean )

Sequence separations

Separation along the main-chain between the two contacting residues.

          i  ->  i + 2          0
          i  ->  i + 3          6  ******
          i  ->  i + 4         52  ********************+
          i  ->  i + 5          0
          i  ->  i + 6          1  *
          i  ->  i + 7          0
          i  ->  i + 8+        36  ********************+

R.m.s. distance ranges

R.m.s. distance ranges of cluster members from representative sidechain.

            Distance
              range       Count
            0.0-0.1           0
            0.1-0.2           0
            0.2-0.3           0
            0.3-0.4           1  *
            0.4-0.5           2  **
            0.5-0.6           4  ****
            0.6-0.7           9  *********
            0.7-0.8           9  *********
            0.8-0.9          12  ************
            0.9-1.0           8  ********
            1.0-1.1           8  ********
            1.1-1.2           9  *********
            1.2-1.3          12  ************
            1.3-1.4          11  ***********
            1.4-1.5           9  *********
