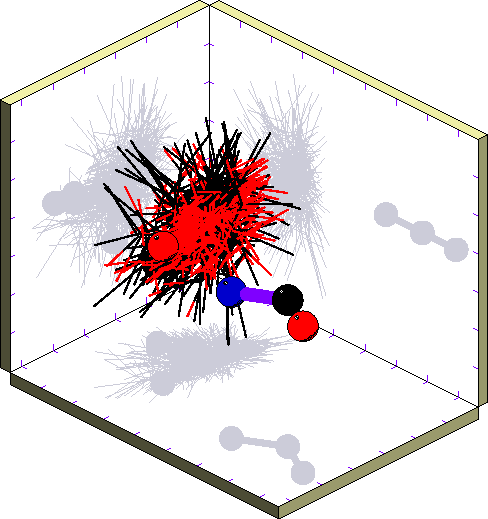

Gln-Asp. Cluster 1

Cluster 1. Size 402 ( 167.43 st. devs. from mean )

Sequence separations

Separation along the main-chain between the two contacting residues.

          i  ->  i + 2          0
          i  ->  i + 3         12  ************
          i  ->  i + 4        142  ********************+
          i  ->  i + 5          6  ******
          i  ->  i + 6          4  ****
          i  ->  i + 7          0
          i  ->  i + 8+        76  ********************+

R.m.s. distance ranges

R.m.s. distance ranges of cluster members from representative sidechain.

            Distance
              range       Count
            0.0-0.1           0
            0.1-0.2           3  ***
            0.2-0.3           4  ****
            0.3-0.4          14  **************
            0.4-0.5          15  ***************
            0.5-0.6          44  ********************+
            0.6-0.7          38  ********************+
            0.7-0.8          25  ********************+
            0.8-0.9          35  ********************+
            0.9-1.0          34  ********************+
            1.0-1.1          33  ********************+
            1.1-1.2          32  ********************+
            1.2-1.3          27  ********************+
            1.3-1.4          51  ********************+
            1.4-1.5          46  ********************+
