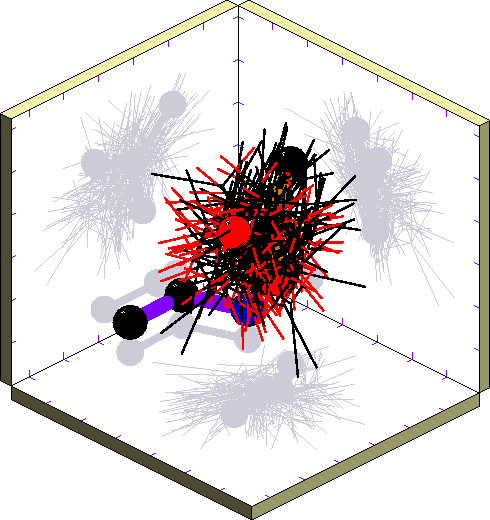

Ala-Asp. Cluster 3

Cluster 3. Size 129 ( 28.38 st. devs. from mean )

Sequence separations

Separation along the main-chain between the two contacting residues.

          i  ->  i + 2          0
          i  ->  i + 3         34  ********************+
          i  ->  i + 4         17  *****************
          i  ->  i + 5          6  ******
          i  ->  i + 6          0
          i  ->  i + 7          0
          i  ->  i + 8+        65  ********************+

R.m.s. distance ranges

R.m.s. distance ranges of cluster members from representative sidechain.

            Distance
              range       Count
            0.0-0.1           0
            0.1-0.2           0
            0.2-0.3           1  *
            0.3-0.4           1  *
            0.4-0.5           4  ****
            0.5-0.6           6  ******
            0.6-0.7           3  ***
            0.7-0.8           7  *******
            0.8-0.9           8  ********
            0.9-1.0          11  ***********
            1.0-1.1           7  *******
            1.1-1.2          21  ********************+
            1.2-1.3          15  ***************
            1.3-1.4          17  *****************
            1.4-1.5          27  ********************+
